3D-Printed Functional Replacement Hinges for MDF Wardrobe Doors

A common issue with MDF wardrobe doors is the failure of traditional hinges due to the soft nature of MDF, which can easily strip when screws are repeatedly removed or adjusted. In this particular case, the original hinges of a bedroom wardrobe door had dislocated, and the screw holes in the 9.5mm thick MDF were damaged, making it difficult to reattach the hinges securely. Standard solutions, such as filling the holes with wood filler or using larger screws, were ineffective and prone to failure.

 The primary challenge was to design a new hinge system that could securely attach to the MDF door without relying on edge screws, which had already failed. Given the thinness of the MDF (9.5mm), any attempt to reinstall screws into the damaged edge would likely result in further instability and dislocation over time.

Key Design Features:

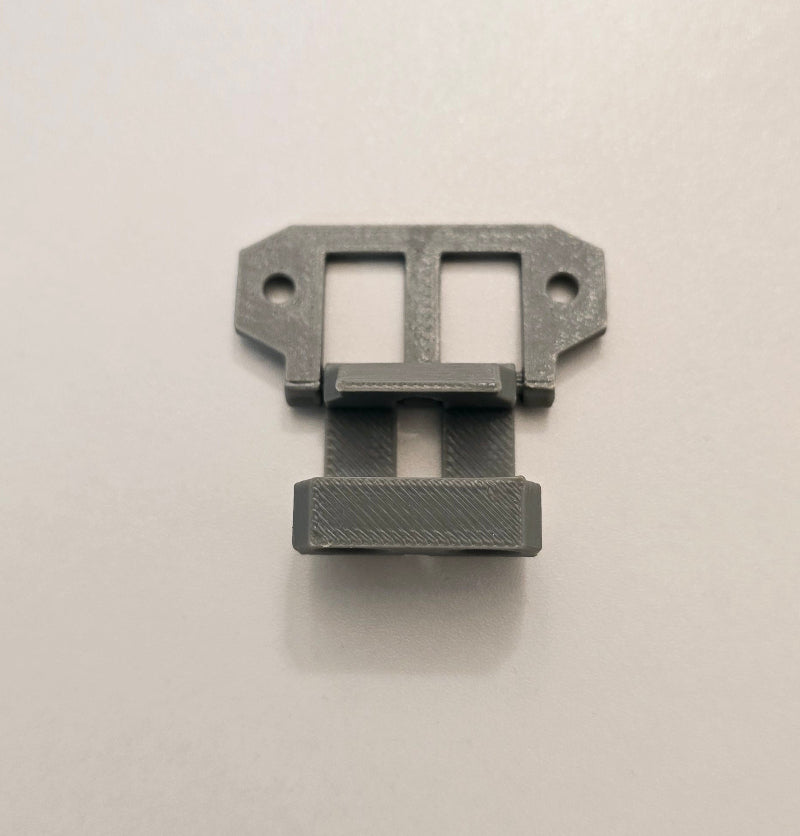

1. Vertical Screw Placement: The new hinge was designed to be mounted on the back surface of the door rather than the edge, ensuring a stronger grip and reducing the risk of future dislocation.



2. Optimized Load Distribution: The hinge design incorporated reinforced structures to distribute the stress evenly across a larger area of the MDF, reducing localized stress points.



3. Precision Fit: The 3D-printed hinge was designed with precise tolerances to ensure smooth operation and a snug fit with the wardrobe frame.



4. Durable Material Selection: High-strength PETG was used to provide durability, flexibility, and impact resistance, ensuring a long-lasting solution.



Easy Installation: The new design was optimized for ease of installation, allowing for a straightforward replacement process without requiring extensive modifications to the existing wardrobe.

Results & Benefits The 3D-printed hinge significantly improved the durability and stability of the wardrobe door. The vertical screw placement eliminated the risk of further MDF damage, and the enhanced design provided a more secure and long-lasting attachment. The use of 3D printing allowed for rapid prototyping and customization, ensuring that the new hinge fit perfectly and functioned seamlessly.

Key Takeaways:

• 3D printing enables the rapid development of functional replacement parts that improve upon original designs.



• Custom solutions can address specific weaknesses in existing furniture or fixtures, extending their lifespan.



• Small yet thoughtful design modifications, such as changing screw placement, can have a significant impact on product longevity and reliability.



This case study demonstrates how 3D printing can be used not just for replication but for enhancing the functionality of everyday household components, offering a cost-effective and innovative solution for common repair challenges.
